7 Most Utilized Air Freighter Specifications

Note: All 747 series aircraft are not same. Below specifications are based on Boeing 747-400/400ER Freighter. For specific aircraft and latest models, please refer to Boeing website.  Copyright © 2010 Boeing.
Aircraft Sector Specification (click to enlarge)

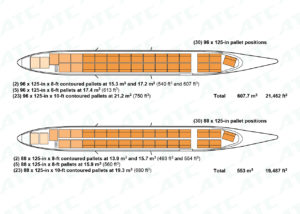

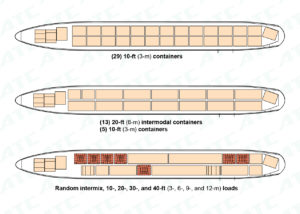

 Main Deck
Cargo Arrangement
(Top View)

Main Deck
Side Cargo Loading
(Top View)

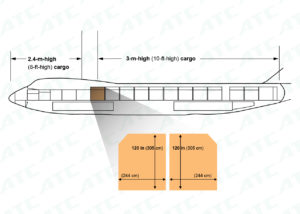

Main Deck
Cargo Height Capacity
(Side View)
 Main Deck & Lower Deck
Cross Section
(Front View)

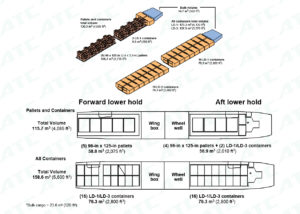

Lower Deck
Cargo Arrangement
(Top & Angle View)

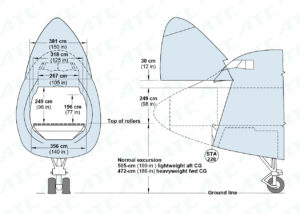

 Main Deck
Nose
(Front & Side View)

 Main Deck
Nose Loading
(Front & Side View)
Structural Loading
Weight Limits
(Top & Side View)
Cargo Door
Arrangement
(Side View)

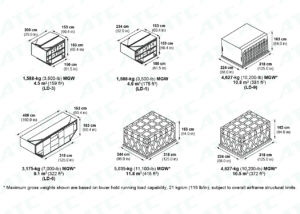

Containers &
Pallets
Note: All 747 series aircraft are not same. Below specifications are based on Boeing 777-200F Freighter. For specific aircraft and latest models, please refer to Boeing website.  Copyright © 2010 Boeing.
Aircraft Sector Specification (click to enlarge)

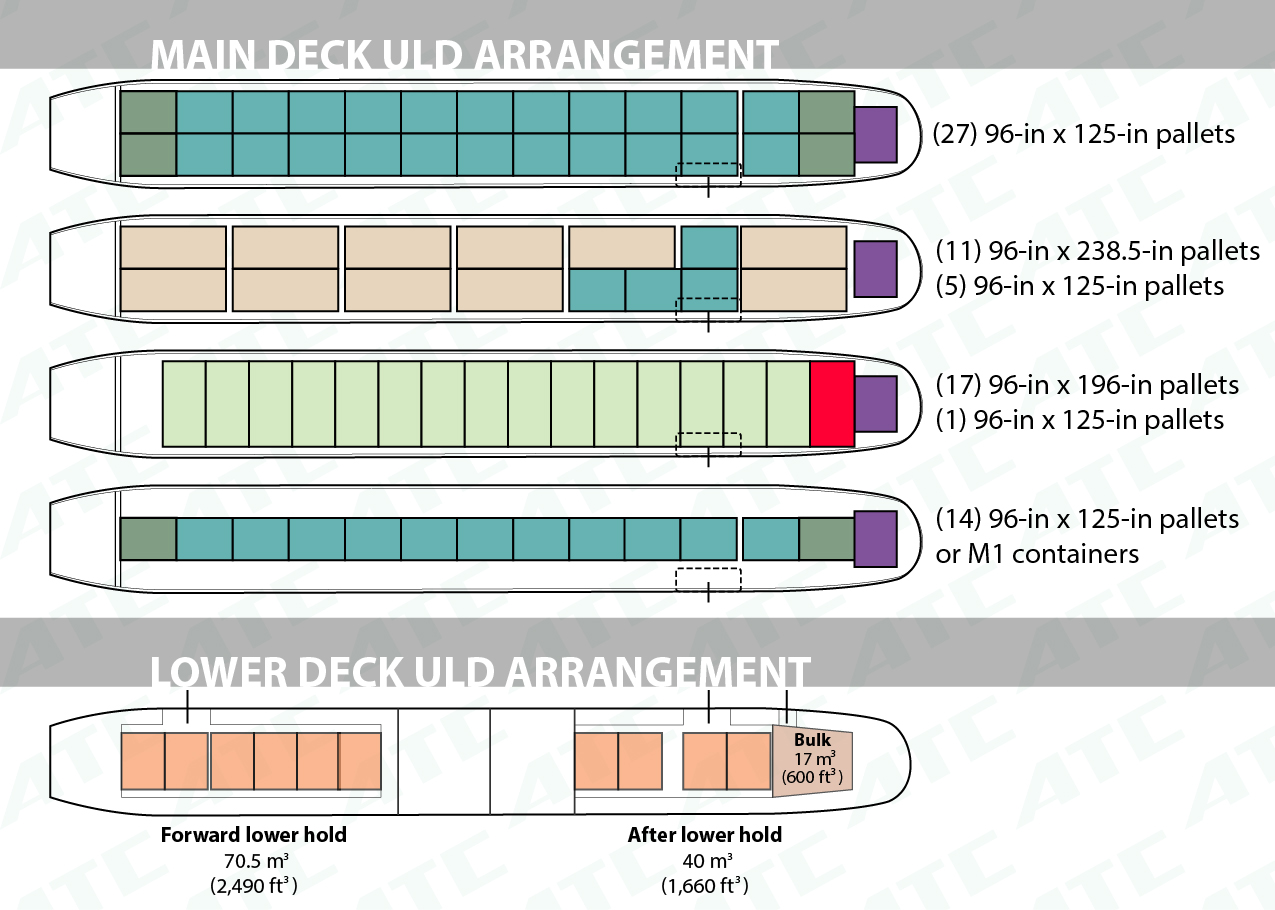

 Main & Lower Deck
Cargo Arrangement
(Top View)

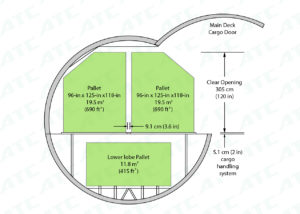

 Main Deck & Lower Deck
Cross Section
(Front View)

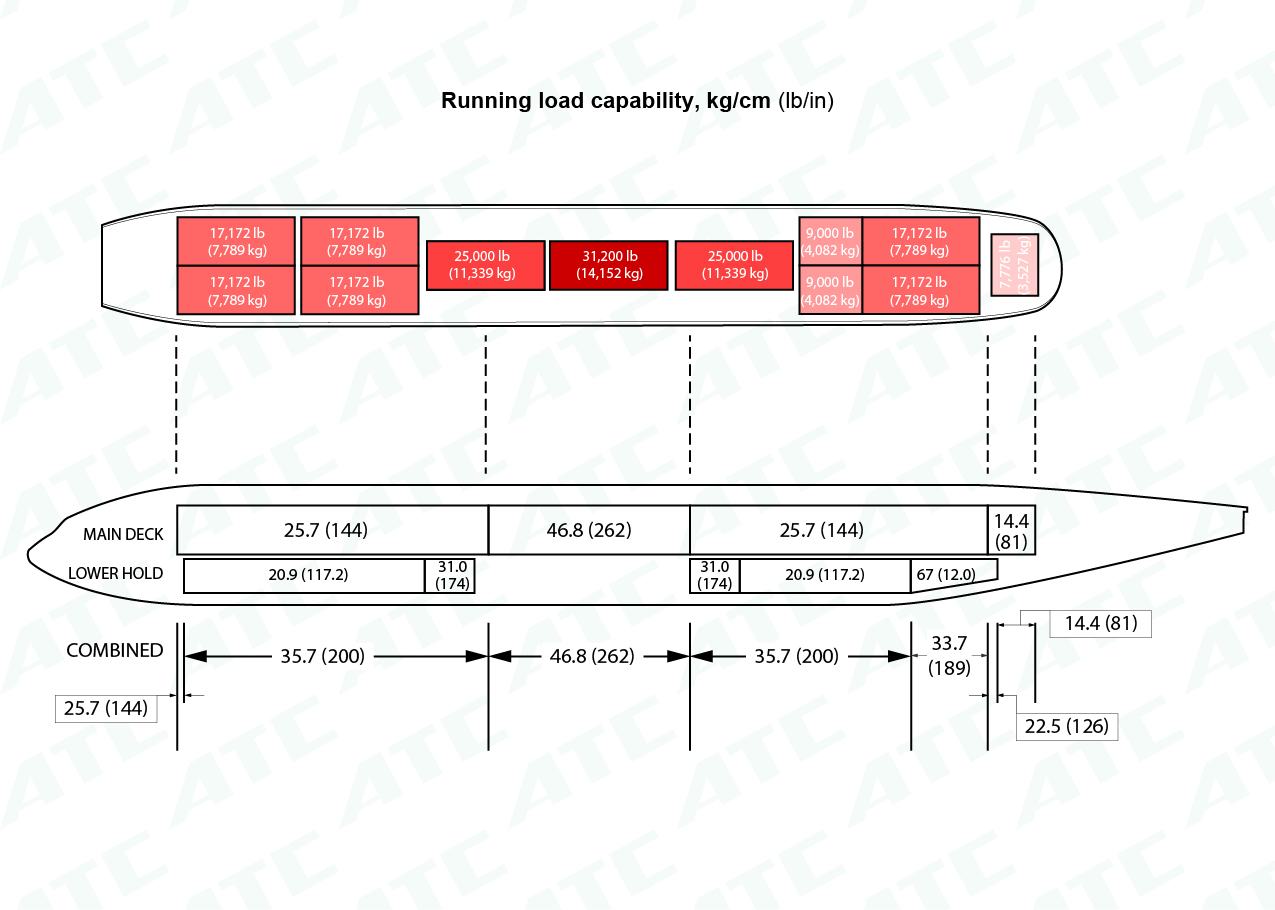

Structural Loading
Weight Limits
(Top & Side View)

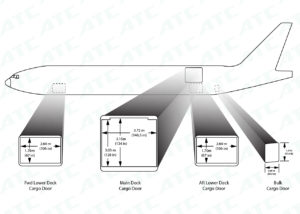

Cargo Door
Arrangement
(Side View)
Containers &
Pallets
Note: All 747 series aircraft are not same. Below specifications are based on Boeing 767-300F Freighter. For specific aircraft and latest models, please refer to Boeing website.  Copyright © 2010 Boeing.
Aircraft Sector Specification (click to enlarge)

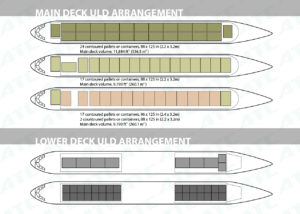

 Main & Lower Deck
Cargo Arrangement
(Top View)

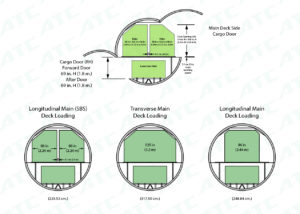

 Main Deck & Lower Deck
Cross Section
(Front View)

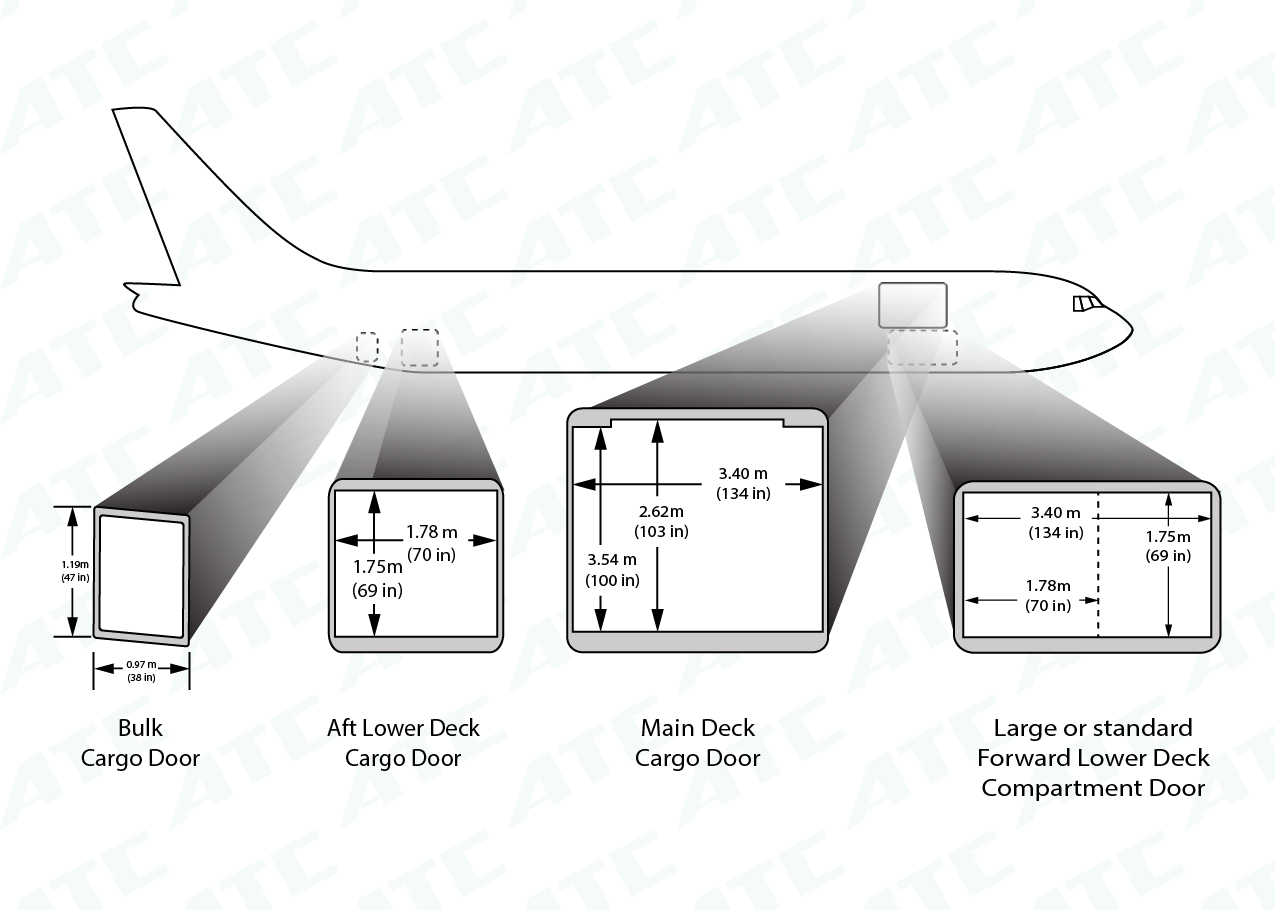

Cargo Door
Arrangement
(Side View)

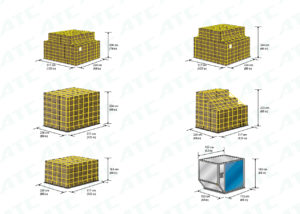

Containers &
Pallets
